Wall Sound Damping system
BILLYTEX DPU-BF BS is Wall sound damping system for good vibration damping properties.
1. Welding the stud bolts on the steel(Bulkhead).
2. Applied approximately 1 mm BILLYTEX BESTOFLEX W(Visco-elastic) layer on the steel(Bulkhead).
3. Applied 2 mm steel plate applied on the Visco-elastic layer.
4. Fasten welded bolt with nut tightly.
•Steel(Bulkhead) + 1mm Visco-Elastic (BESTOFLEX W) + 2mm Steel plate
Physical property |
Product |
Unit |
Result |
Note |
Basis
| BESTOFLEX W (Visco-elastic) |
-
| A two component
Polyurethane damping compound. | |
Color |
-
| Various color
| ||
Density |
g/㎤
| Approx..1.3
| ||
Pot life |
min
| Approx. 15
| at 25℃
| |
Curing time |
hours
| Approx. 8~10
| at 25℃
| |
Recommended application Temperature |
-
| +5℃ - +30℃
| ||
Solid content |
%
| 100
| ||
Solvent |
-
| Solvent free
| ||
Fire resistance |
-
| Fire resistant
|

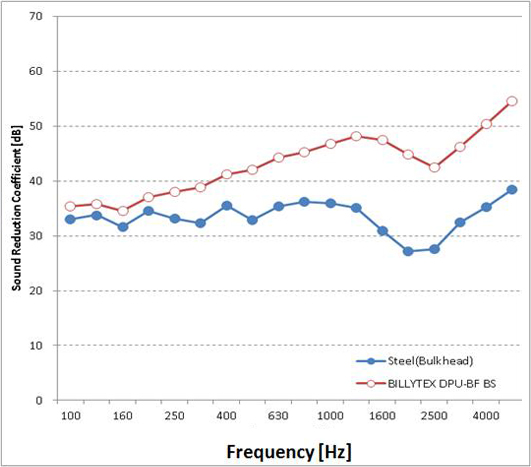

* Measurement according to ISO 10140-2 and ISO 717-1.
Hz | dB |
---|---|
100 | 35.3 |
125 | 35.8 |
160 | 34.5 |
200 | 37.1 |
250 | 38.0 |
315 | 38.9 |
400 | 41.2 |
500 | 42.0 |
630 | 44.3 |
800 | 45.2 |
1000 | 46.8 |
1250 | 48.2 |
1600 | 47.5 |
2000 | 44.8 |
2500 | 42.4 |
3150 | 46.2 |
4000 | 50.4 |
5000 | 54.5 |
Rw | 45 |
